Facing bricksLinea 9001

Technical data sheets

Color description
The colour is ecru to cream-white with nuances through and through.
Manufacturing dimensions (L x W x H)
ca. 248x117x38 mm (LxWxH)
Quantity / m² with a traditional joint
77 (12 mm)
Number / m² with a thin joint
90 (6 mm)

case studie Linea 9001

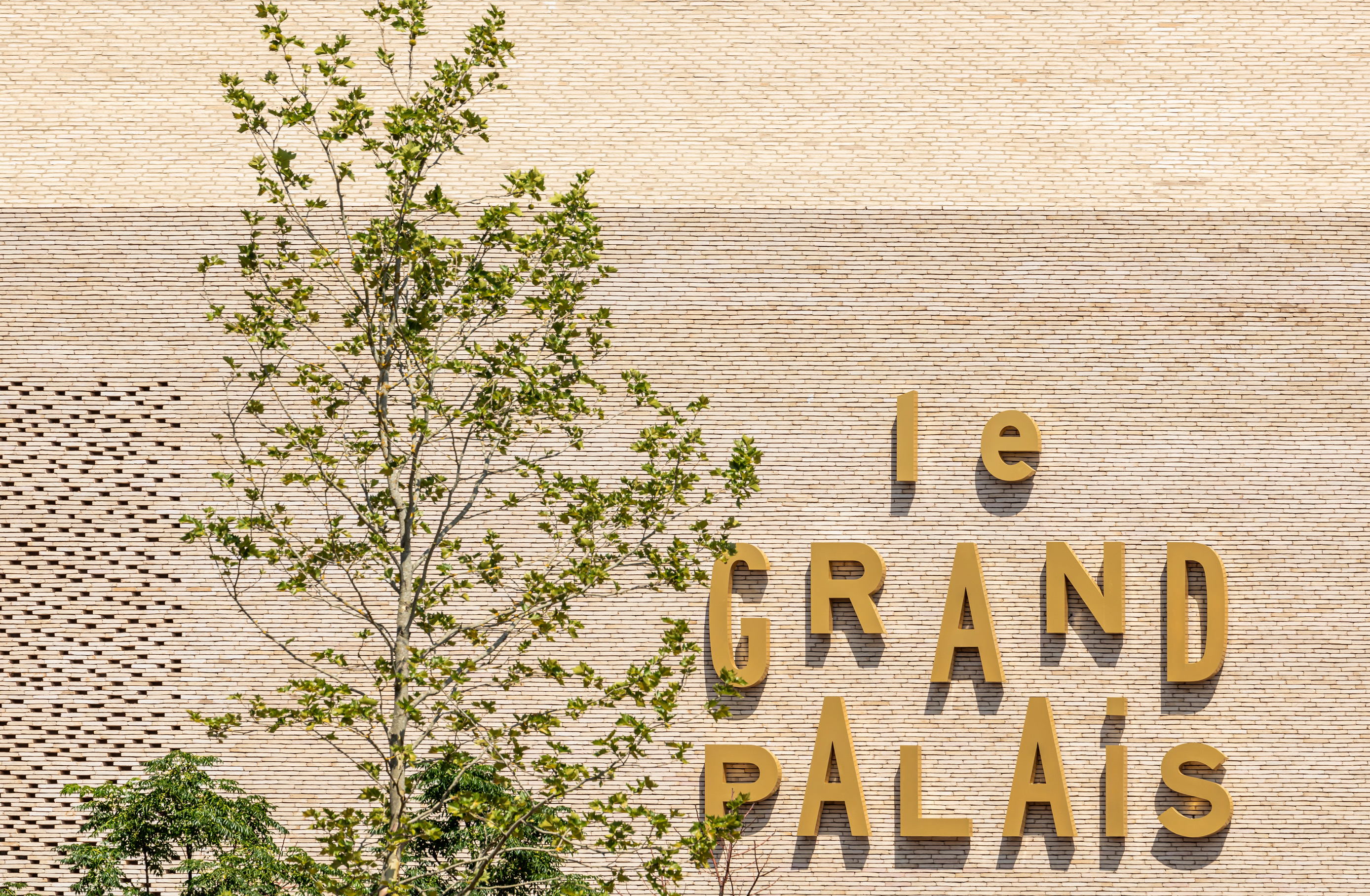

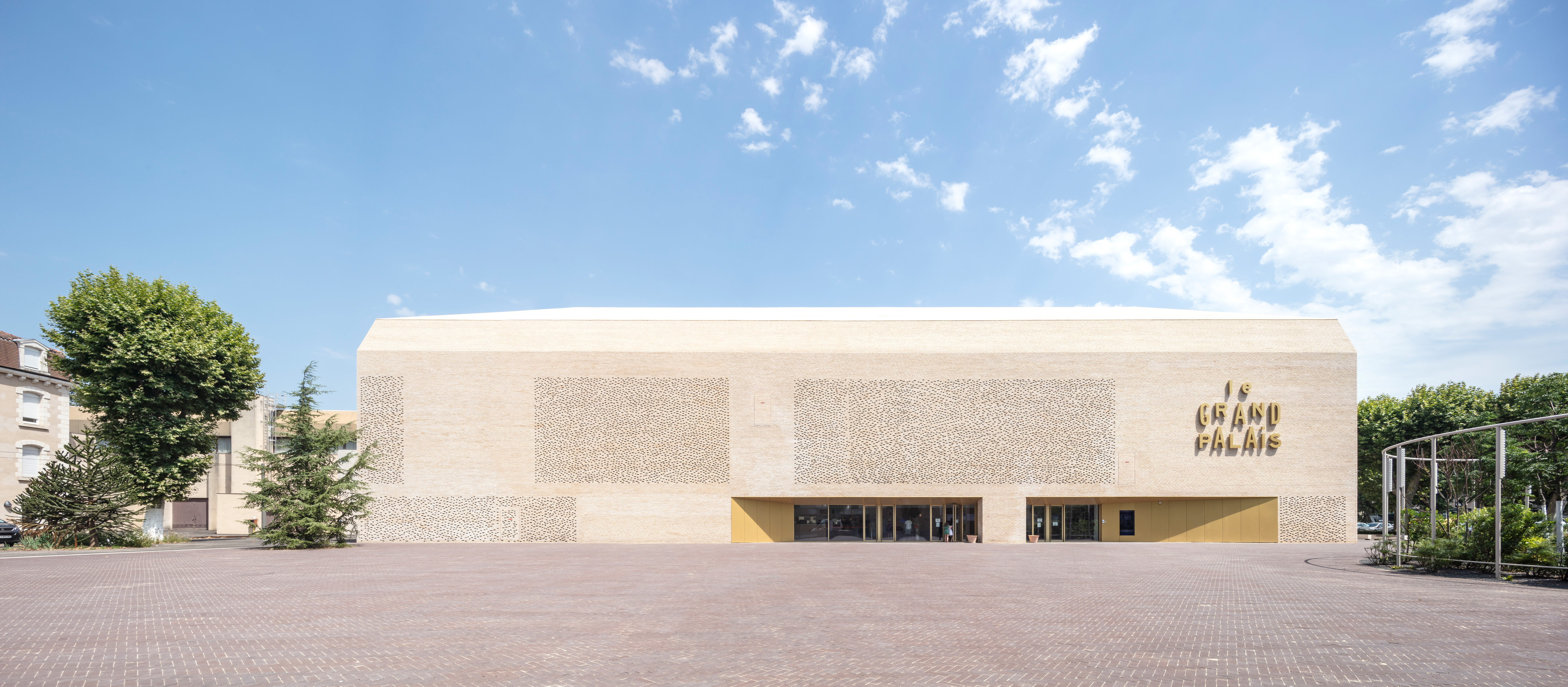

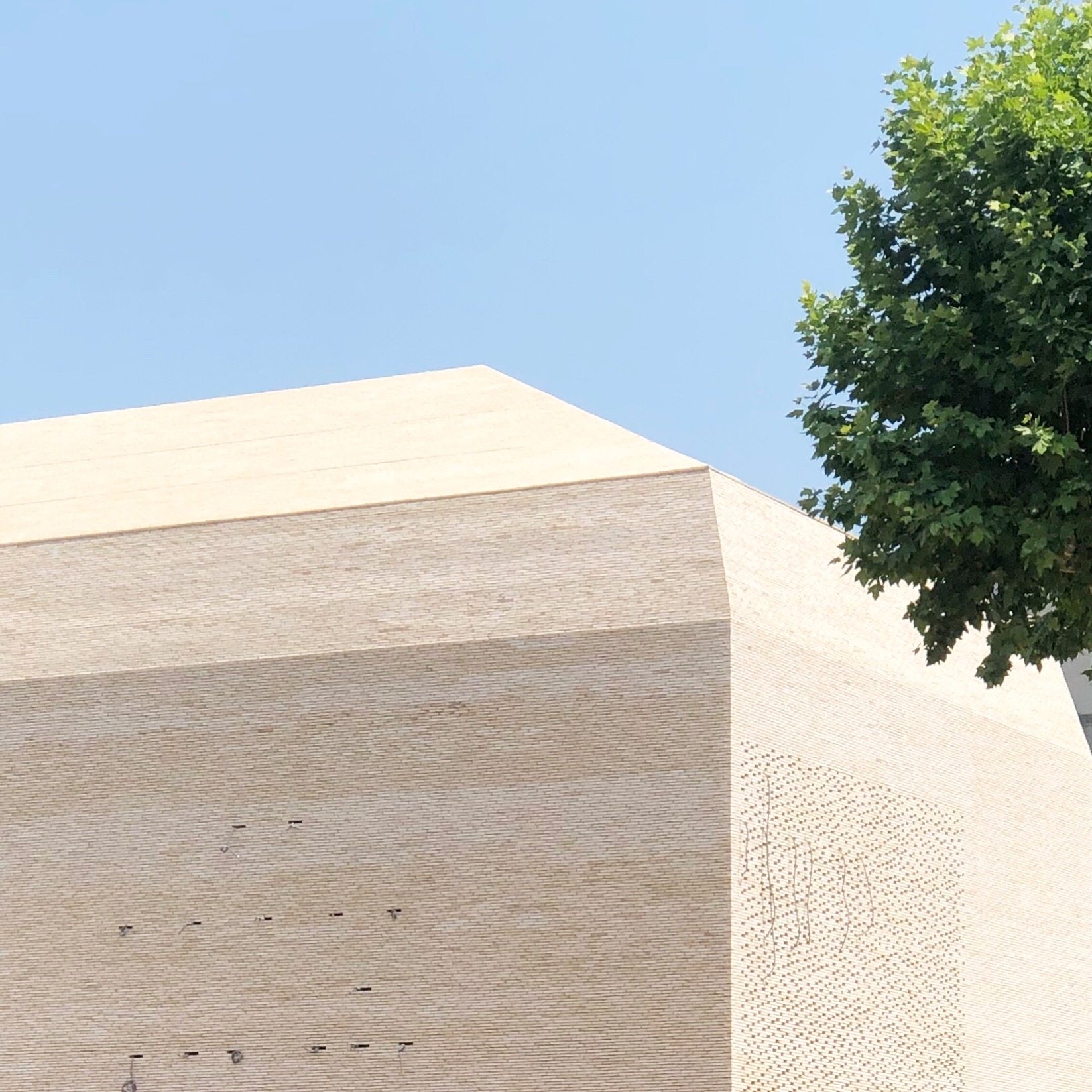

‘Le Grand Palais’ cinema in Cahors constructed using the 'linea 9001'

‘Le Grand Palais’ cinema in Cahors constructed using the 'linea 9001'

Visual dialogue between two striking volumes of facing brick and perforated gilded metal

The cinema is located on the north side of the historic centre of Cahors, a stone’s throw from the banks of the river Lot. The project gave the city council the opportunity to commemorate the old barracks in the Place Bessières and to restore the symmetry from yesteryear which was lost when a fire completely destroyed the east wing in 1943.


Search by city

Reference list Linea 9001
Postal code City Street Bond Joint Joint colour Window Roofing Remarks
9880 Aalter Weibroekdreef (naast nr. 125) Random bond with strike-through joint 10 mm
1790 Affligem Geukenshage 31 Random bond 6 mm
4854 EC Bavel Patrijzenlaar 13A Stretcher bond
2880 Bornem (Weert) Binnendijkstraat 52a Random bond 10 mm
46000 Cahors Place Bessières, Rue Pierre Mendès France Random bond 6 mm gold brick slips linea 9001 cinema
9800 Deinze Peter Benoitlaan 2A Stretcher bond 12 mm
5651 EH Eindhoven Elburglaan 9 Random bond 6 mm
7524 NK Enschede Eschbeekweg 27 Random bond
9000 Gent hoek Ingelandgat/Wilderoosstraat Random bond 10 mm
GL6 6ER Gloucestershire Somerdale Townsend Randwick Stroud Random bond 8 mm
Print all

How to Install ?

Preparation of the construction site

Quality brickwork starts with the proper storage of the materials. Provide a firm level base so that bricks are not in contact with rain and/or dirt.
As clay is a natural material, successive production runs of the same kind of bricks may present colour variations and size tolerances.
The following precautions will help minimizing this:
  • Always order the full amount of bricks required for a specific site. In this way, the entire order can be made during one production run.
  • Try to have the full order supplied at one time. If this creates several deliveries, always mix a number of packs from the previous delivery with a number of packs from the new delivery. This procedure is especially recommended in case of re-order or for an additional order.
  • Take bricks diagonally across the pack.
  • Draw and use bricks from at least five different packs.
  • For setting out, use bricks from the delivery made to the site in question. Do not exclusively use the theoretical dimensions of the brick, or samples previously supplied, or different production run from that intended for the site.
  • As soon as the bricks arrive on site, check delivery tickets and certificates against the specification and order. Also check that there are no visible inconsistencies with the order.
  • Do not lay bricks in freezing weather or protect the ‘fresh’ masonry with insulating mats in order to avoid frost damage to the mortar.
  • In the case of prolonged dry hot weather, lightly dampen the newly laid brickwork to stop the mortar drying and curing too quickly.
  • Do not lay bricks in precipitation in order to prevent mortar from running on the wall.

Avoid Efflorescence

Brickwork is sometimes marred by white bloom. This efflorescence is usually caused because bricklaying is done under unfavourable weather conditions. The necessary protective measures are often not implemented due to a tight schedule and fast building pace. In very wet conditions, water in soluble substances can result in efflorescence on the surface. In spring as well as autumn, after a wet period (when the brickwork has dried again), soluble substances can rise to the surface as a result of moisture transport. After evaporation of the water, a white bloom is left behind. (Source: Efflorescence on brickwork – Heidelberg Cement Group)
Efflorescence on brickwork is always likely to occur. There is no brick - or combination of a certain brick with a specific mortar - that is absolutely efflorescence-free. By taking a few simple precautions, the risk of efflorescence can be reduced.
  • During and after laying, protect the newly built brickwork for a height of at least 60 cm - but ensure there is airspace between the brick face and the waterproof covering.
  • Provisionally install rainwater down pipes to avoid saturation of the newly laid brickwork
  • Never lay bricks in driving rain conditions
