Facing bricksLinea7 8012

Linea7 8012

Technical Information

Color description
The colour is red purple and the bricks are through-coloured.
Manufacturing dimensions (L x W x H)
ca. 240x76x38 mm (LxWxH)
Quantity / m² with a traditional joint
ca. 80 (12 mm)
Number/m² with a thin joint
ca. 95 (6 mm)
size 2
ca. 240x115x38 mm (LxWxH) - on demand for projects > 2000m²

case studie Linea7 8012

Linea 8012 and SeptimA Claret in unique and surprising applications

Linea 8012 and SeptimA Claret in unique and surprising applications

Uniformity as a concept

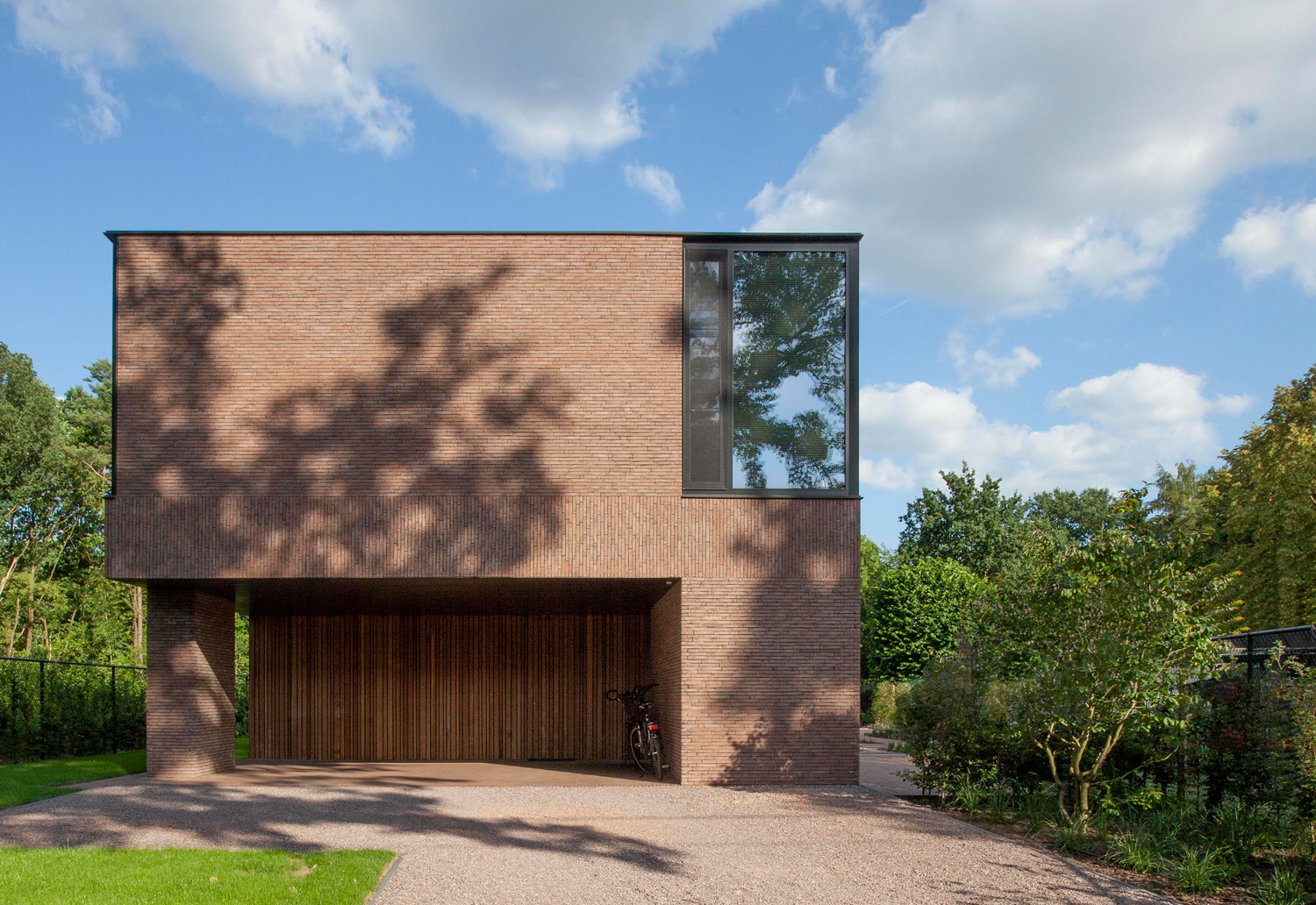

As the owner of this building is the co-manager of a construction company, this project needed to reference this in every way. The resulting building stands out in more ways than one. Within its environment the building catches - very subtly - the eye architecturally, technically and conceptually.

References

Search by city




Print list
Reference list Linea7 8012
Postal code City Street Style and description Joint Joint colour Window Roofing Remarks
3570 Alken Hulzenstraat 5 6 mm
3570 Alken Schuilenstraat 6 mm
7800 Ath Rue de Messine 14-16 12 mm
7971 Basecles Rue des Carierres 5 12 mm
9150 Bazel Lamperstraat 23 6 mm
3740 Bilzen Meershoven 143 6 mm
5170 Bois de Villers Rue Raymond Noêl 151 6 mm
3840 Borgloon Kan. Darisstr.1A 6 mm
3960 Bree Hansweg 71 6 mm
9810 Eke Sterrenbosstraat 51 6 mm
Print all

ProcessingTips

Preparation of the construction site

Quality brickwork starts with the proper storage of the materials. Provide a firm level base to so that bricks are not in contact with rain and/or dirt.
As clay is a natural material, successive production runs of the same kind of bricks may present colour variations and size tolerances.
The following precautions will help minimizing this:
  • Always order the full amount of bricks required for a specific site. In this way, the entire order can be made during one production run.
  • Try to have the full order supplied at one time. If this creates several deliveries, always mix a number of packs from the previous delivery with a number of packs from the new delivery. This procedure is especially recommended in case of re-order or for an additional order.
  • Take bricks diagonally across the pack.
  • Draw and use bricks from at least five different packs.
  • For setting out, use bricks from the delivery made to the site in question. Do not exclusively use the theoretical dimensions of the brick, or samples previously supplied, or different production run from that intended for the site.
  • As soon as the bricks arrive on site, check delivery tickets and certificates against the specification and order. Also check that there are no visible inconsistencies with the order.
  • Do not lay bricks in freezing weather or protect the ‘fresh’ masonry with insulating mats in order to avoid frost damage to the mortar.
  • In the case of prolonged dry hot weather, lightly dampen the newly laid brickwork to stop the mortar drying and curing too quickly.
  • Do not lay bricks in precipitation in order to prevent mortar from running on the wall.

Avoid Efflorescence

Brickwork is sometimes marred by white bloom. This efflorescence is usually caused because bricklaying is done under unfavourable weather conditions. The necessary protective measures are often not implemented due to a tight schedule and fast building pace. In very wet conditions, water in soluble substances can result in efflorescence on the surface. In spring as well as autumn, after a wet period (when the brickwork has dried again), soluble substances can rise to the surface as a result of moisture transport. After evaporation of the water, a white bloom is left behind. (Source: Efflorescence on brickwork – Heidelberg Cement Group)

Efflorescence on brickwork is always likely to occur. There is no brick - or combination of a certain brick with a specific mortar - that is absolutely efflorescence-free. By taking a few simple precautions, the risk of efflorescence can be reduced.
  • During and after laying, protect the newly built brickwork for a height of at least 60 cm - but ensure there is airspace between the brick face and the waterproof covering.
  • Provisionally install rainwater down pipes to avoid saturation of the newly laid brickwork
  • Never lay bricks in driving rain conditions
