Facing bricksVeldbrand Red

Technical data sheets

Color description
The colouris red-brown to violet-blue with nuances.
Manufacturing dimensions (L x W x H)
ca. 195x92x62 mm (LxWxH)
Quantity / m² with a traditional joint
66 (12 mm)
Number / m² with a thin joint
74 (6 mm)

case studie Veldbrand Red

Expressive brickwork exudes the craft of ‘brick making’

Expressive brickwork exudes the craft of ‘brick making’

Not ‘just another brick in the wall’

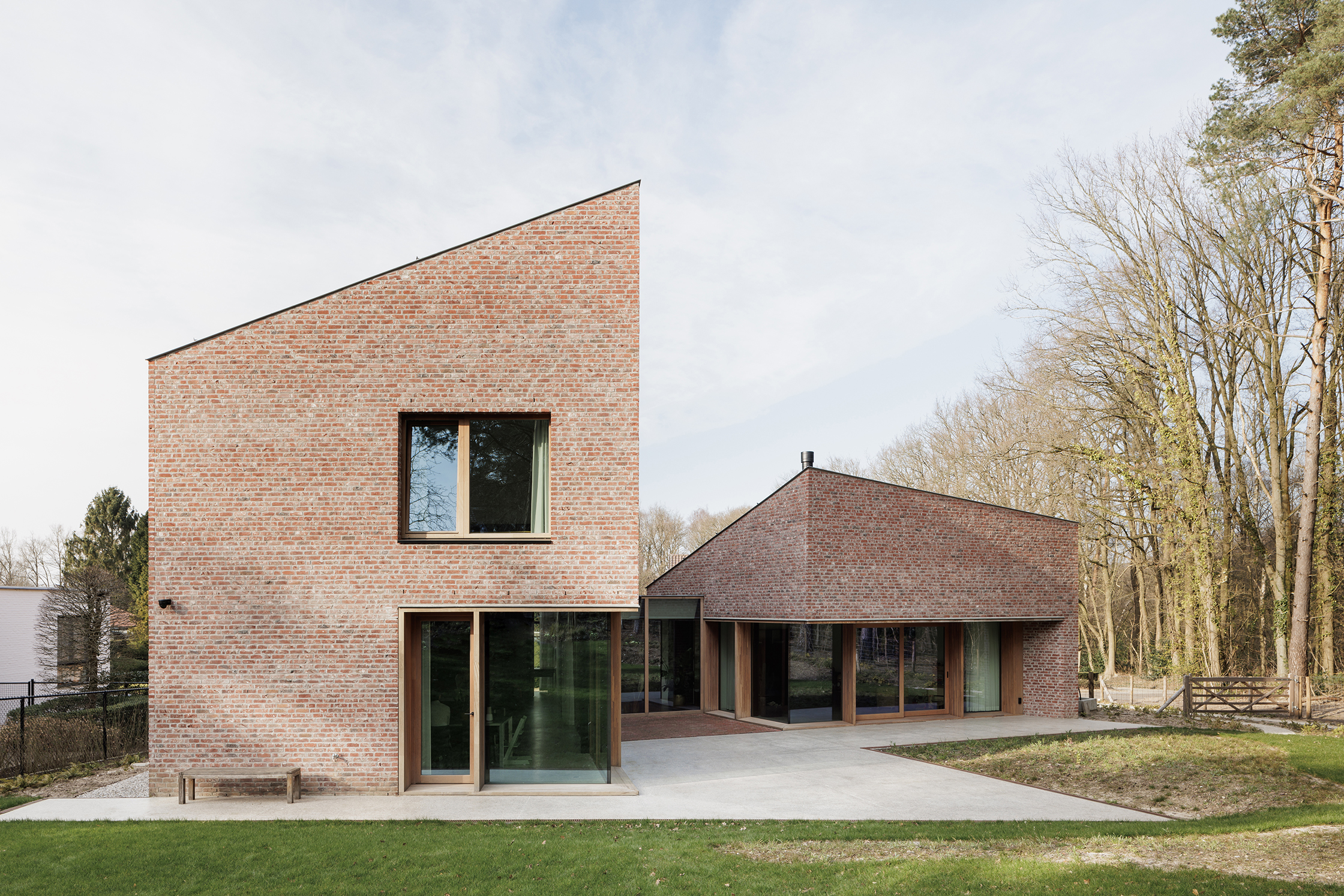

The site of this remarkable house was originally an undeveloped building plot for a detached property on an old green parcel of land from the 1960s. However, the clients didn’t like the stereotypical conformist concept of a detached house on a neatly mowed lawn.

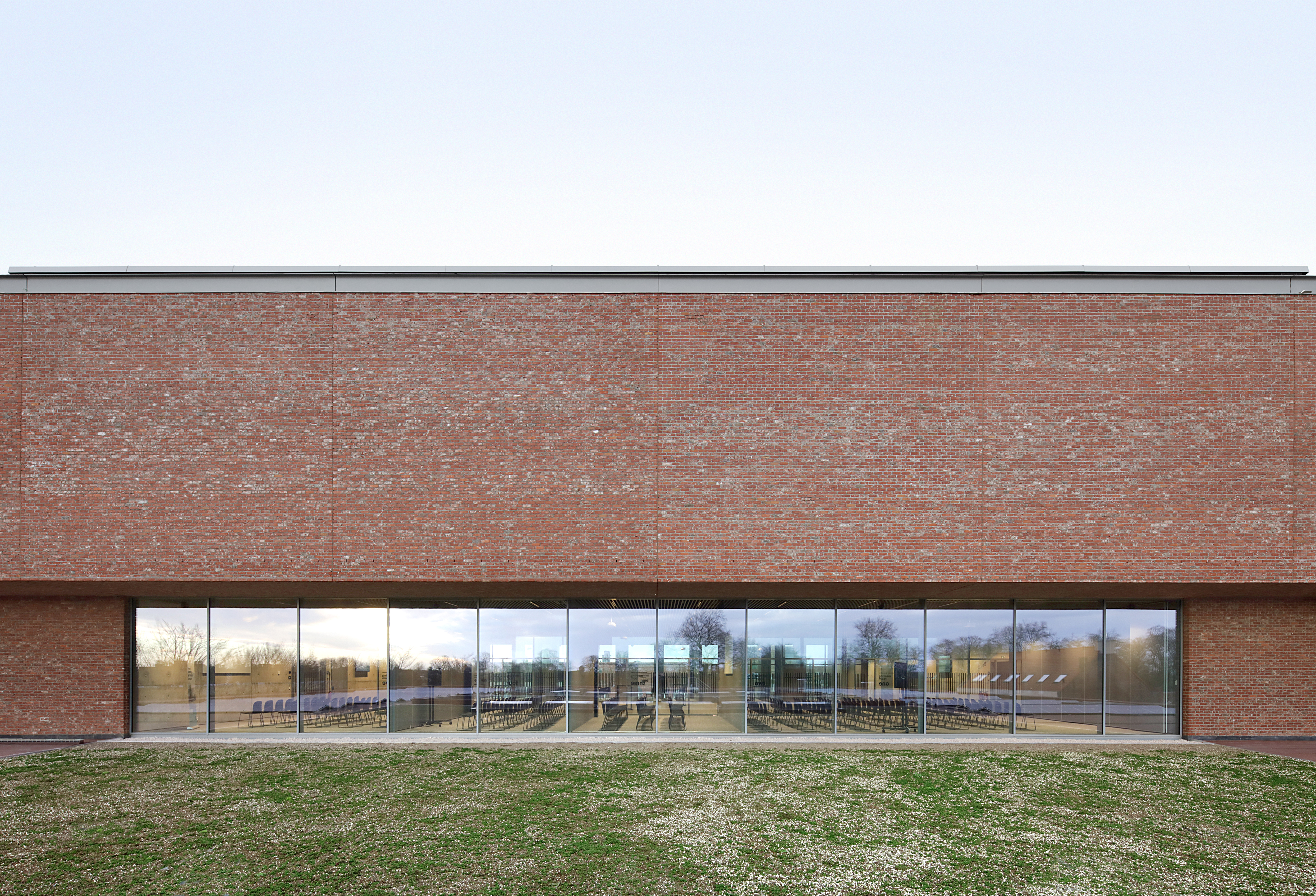

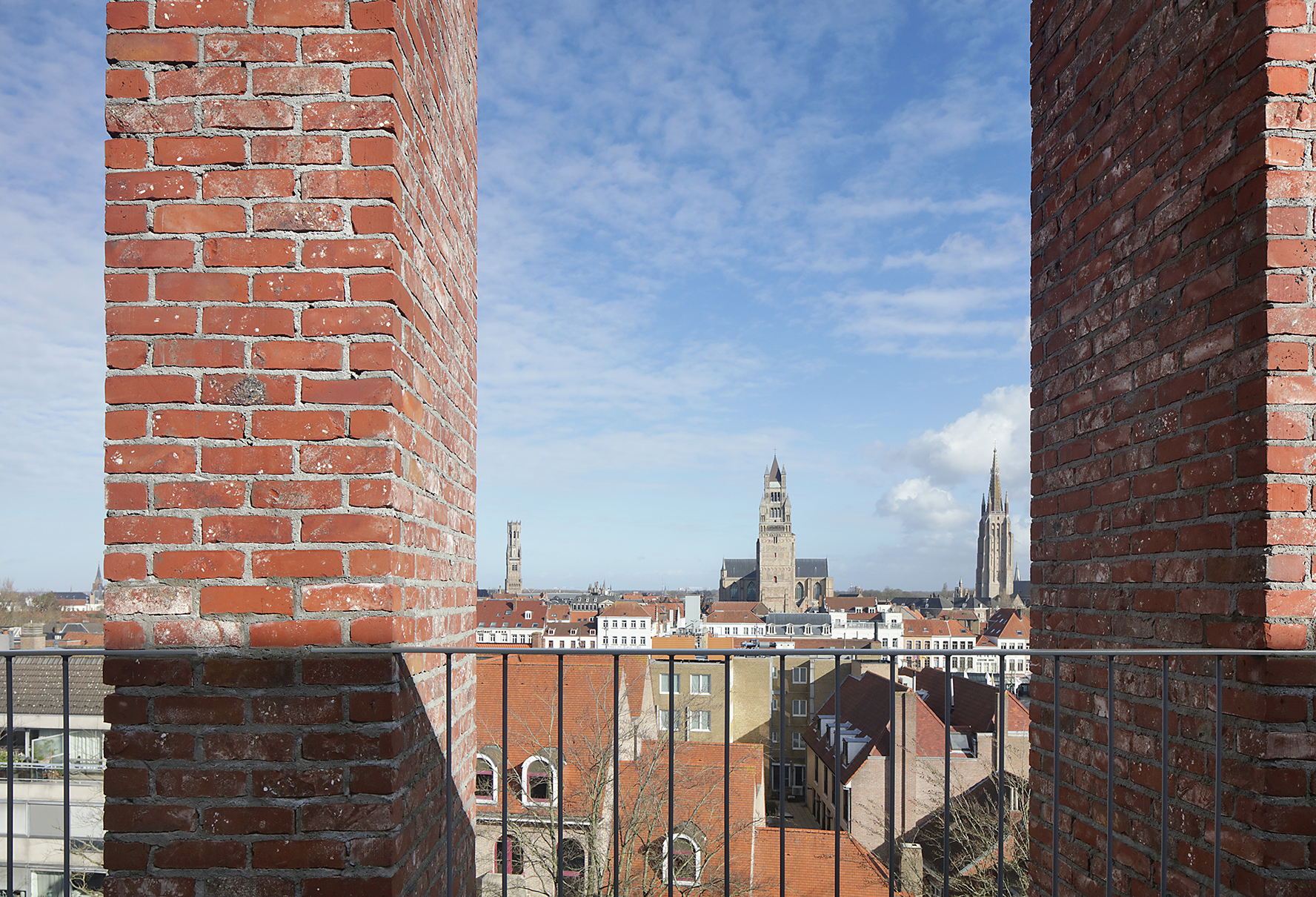

BMCC, an urban renewal project that plays all the trump cards of the historic city centre

BMCC, an urban renewal project that plays all the trump cards of the historic city centre

Veldbrand forms the perfect synthesis of facing bricks in the neighbourhood so that the new meeting and convention centre fits in effortlessly with its surroundings

Bruges city centre is another rich attraction. The Beursplein (Exhibition Hall Square) now lives up to its name because since 31 March, it has boasted the brand new Bruges Meeting and Convention Centre (BMCC) where an impersonal car park used to mar the view. Designed by Souto de Moura Architects and META Architectuurbureau, this gem connects the neighbourhood in every respect while also attracting lots of tourists to the heritage city at the same time.

References

Search by city





Reference list Veldbrand Red
Postal code City Street Bond Joint Joint colour Window Roofing Remarks
9120 Beveren Klapperstraat Random bond 12 mm
9961 Boekhoute Tingelhoek 21 Random bond 12 mm
8000 Brugge Beursplein 1 Stretcher bond 12 mm
8720 Dentergem Tieltseweg 19 Random bond 6 mm
9050 Destelbergen Olmenlaan 8 Random bond 12 mm
1653 Dworp Duling tov 39 Stretcher bond 12 mm White
9000 Gent Spadestraat Stretcher bond 12 mm
3530 Houthalen Molenweg 85 Random bond 12 mm Wood Villa
9750 Huise Keitelstraat 9 Random bond 12 mm
9280 Lebbeke Lange Molenstraat links van 31 Random bond 6 mm
Print all

How to Install ?

Preparation of the construction site

Quality brickwork starts with the proper storage of the materials. Provide a firm level base so that bricks are not in contact with rain and/or dirt.
As clay is a natural material, successive production runs of the same kind of bricks may present colour variations and size tolerances.
The following precautions will help minimizing this:
  • Always order the full amount of bricks required for a specific site. In this way, the entire order can be made during one production run.
  • Try to have the full order supplied at one time. If this creates several deliveries, always mix a number of packs from the previous delivery with a number of packs from the new delivery. This procedure is especially recommended in case of re-order or for an additional order.
  • Take bricks diagonally across the pack.
  • Draw and use bricks from at least five different packs.
  • For setting out, use bricks from the delivery made to the site in question. Do not exclusively use the theoretical dimensions of the brick, or samples previously supplied, or different production run from that intended for the site.
  • As soon as the bricks arrive on site, check delivery tickets and certificates against the specification and order. Also check that there are no visible inconsistencies with the order.
  • Do not lay bricks in freezing weather or protect the ‘fresh’ masonry with insulating mats in order to avoid frost damage to the mortar.
  • In the case of prolonged dry hot weather, lightly dampen the newly laid brickwork to stop the mortar drying and curing too quickly.
  • Do not lay bricks in precipitation in order to prevent mortar from running on the wall.

Avoid Efflorescence

Brickwork is sometimes marred by white bloom. This efflorescence is usually caused because bricklaying is done under unfavourable weather conditions. The necessary protective measures are often not implemented due to a tight schedule and fast building pace. In very wet conditions, water in soluble substances can result in efflorescence on the surface. In spring as well as autumn, after a wet period (when the brickwork has dried again), soluble substances can rise to the surface as a result of moisture transport. After evaporation of the water, a white bloom is left behind. (Source: Efflorescence on brickwork – Heidelberg Cement Group)

Efflorescence on brickwork is always likely to occur. There is no brick - or combination of a certain brick with a specific mortar - that is absolutely efflorescence-free. By taking a few simple precautions, the risk of efflorescence can be reduced.
  • During and after laying, protect the newly built brickwork for a height of at least 60 cm - but ensure there is airspace between the brick face and the waterproof covering.
  • Provisionally install rainwater down pipes to avoid saturation of the newly laid brickwork
  • Never lay bricks in driving rain conditions
