Facing bricksBrick E

Technical data sheets

Color description: The colour of the body is red with strong red and red-brown to purple-blue nuances.
Manufacturing dimensions (L x W x H): ca. 220x70x54 mm (LxWxH)
Quantity / m² with a traditional joint: 66 (12 mm)
Number / m² with a thin joint: 74 (6 mm)

Brick E

Red brown ecological Waal format

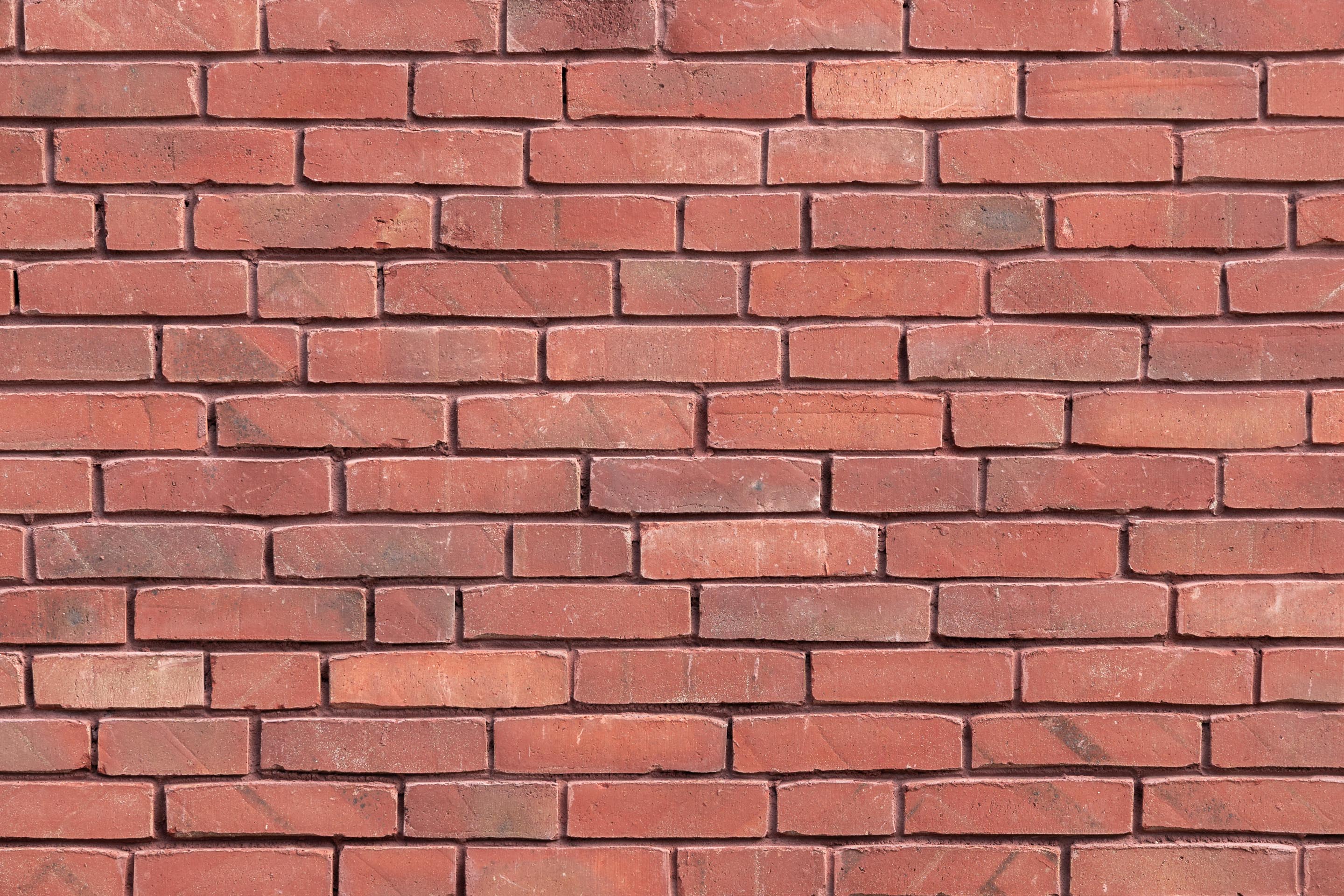

Brick E is a red brown (Ferro red pure) moulded brick produced using the Wasserstrich method. It carries both our Hand-Made label and the ECO-7-size label. Our Hand-Made label guarantees a strong, natural nuance. The unsanded Brick E also carries the ECO-7-size label because it is 7 cm deep, unlike the classic Waal format which is 10 cm deep.

Texture Generator

References

Slips by BrickZ

Technical data sheets

case studie Brick E

Creativity with facing bricks defines look of office building

Brick has been and still is the most durable and timeless material

CAW Oost-Vlaanderen is in the process of constructing an office building with primary care facilities and 16 short-stay units on the site of a former brewery in the heart of Sint-Gillis-bij-Dendermonde.

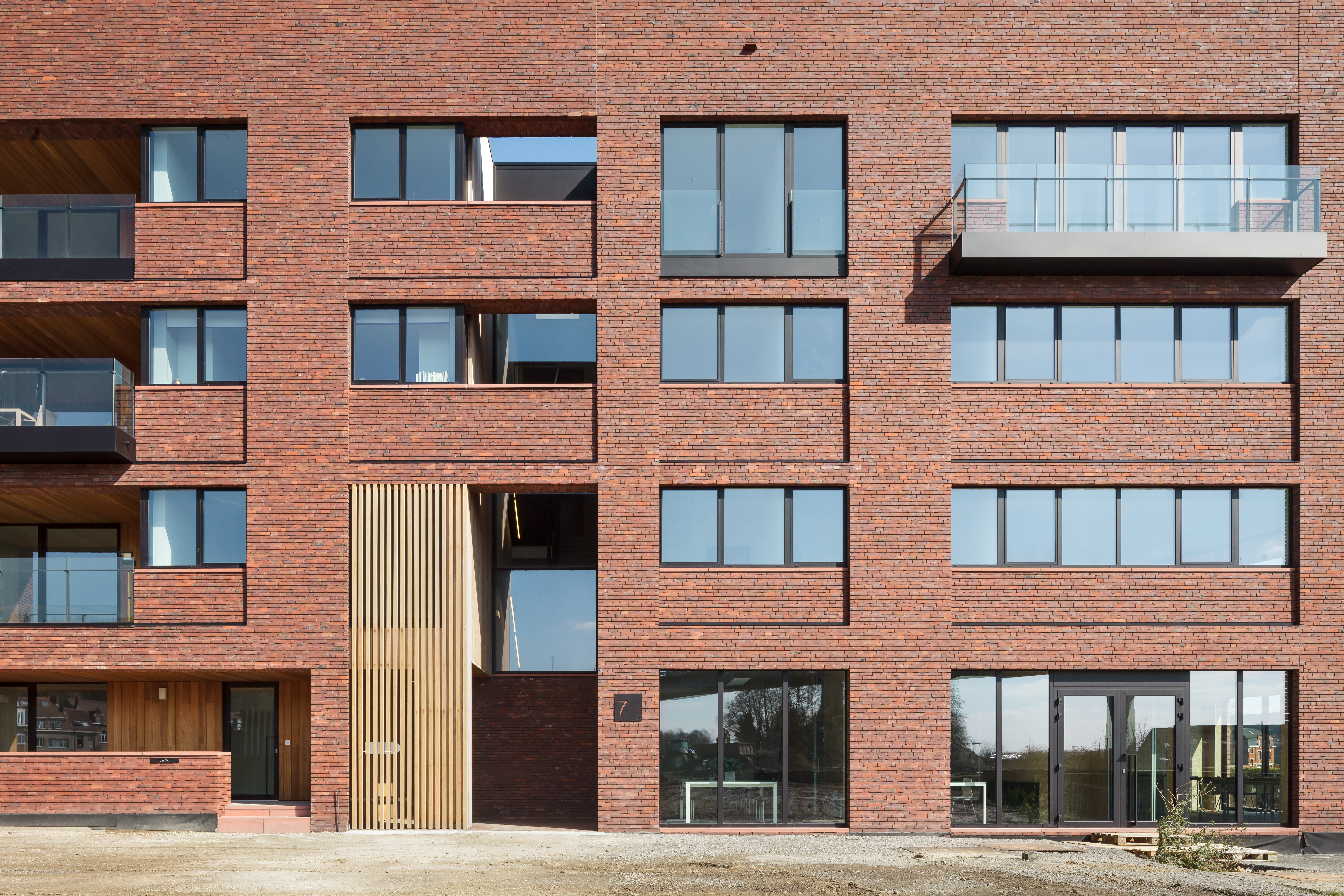

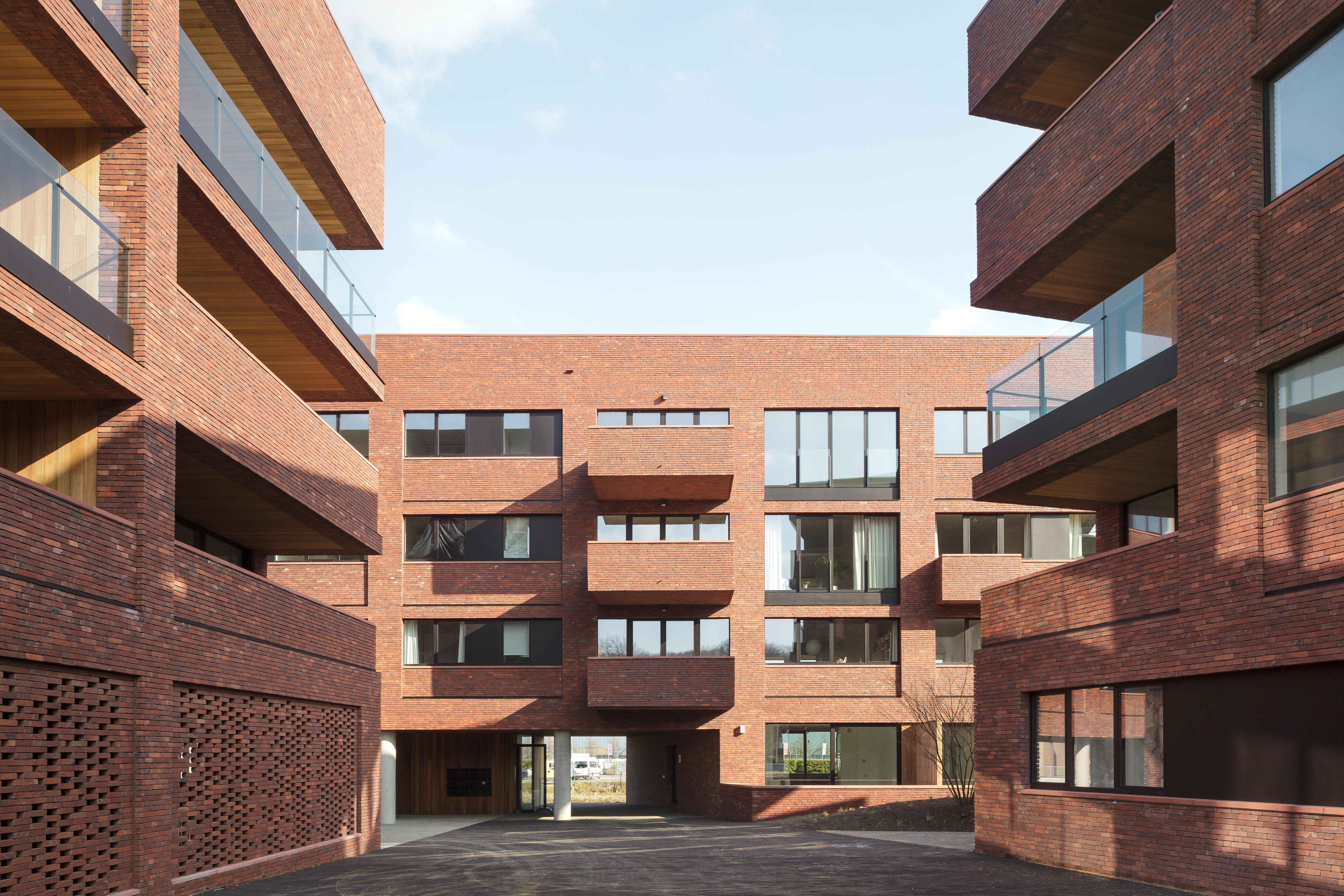

Dark-red monoblock bricks respond to multiformity and diversity of environment of ‘t Sas site

The devalued industrial strip, hemmed in between railways and a canal, is being converted into a valuable district of Vilvoorde. Within this strategically located reconversion area on the edge of the European capital, we find the ‘t Sas project.

Mettewie residential care facility demands attention with striking façade elements and variation in brickwork

The construction of this new rest home which provides specialist care in Sint-Jans-Molenbeek comprises 117 individual rooms as well as 24 comfortable and bright assisted living apartments. The building is located on the corner of Louis Mettewielaan and Condorlaan.

An atypical facade inspired by the surrounding neoclassical architecture

The choice of the facing brick at the heart of architectural success

On the banks of the Quai Godefroid Kurth in Liège, an urban setting marked by a rich architectural juxtaposition, the Kurth project stands as a model of integration and harmony. Designed by Olivier Fourneau Architectes, this project combines offices and housing while ensuring a smooth transition between two emblematic buildings: a neoclassical bourgeois house and an art deco church dating from 1930. At the heart of this architectural success lies a crucial decision: the choice of the facing brick.

Show all case studies

References

Search by city

Print list

Reference list Brick E

You can scroll in this list

Postal code	City	Street	Bond	Joint	Window	Remarks
1053 VB	Amsterdam	Kwakersstraat - Bilderdijkkade	Random bond with strike-through joint	12 mm
1730	Asse	Elfjulistraat	Random bond	6 mm
1730	Asse	Prieelstraat 23	Random bond	6 mm
4880	Aubel	Route du Chateau Magis 15a
4630	Ayeneux	Chaussée de Wégemont 235	Random bond	6 mm
3060	Bertem	hoek Dorpstraat - Mezenstraat	Random bond	6 mm
9120	Beveren	Kallobaan	Random bond	6 mm
2530	Boechout	Molenlei - Heuvelstraat	Random bond	10 mm
9660	Brakel	Schudewee 9	Random bond	6 mm
1081	Brussel	Vrijheidslaan 25	Random bond	6 mm	black	appartements 'Upliving' BXL - The Brewery

Postal code	City	Street	Bond	Joint	Window	Remarks
1053 VB	Amsterdam	Kwakersstraat - Bilderdijkkade	Random bond with strike-through joint	12 mm
1730	Asse	Elfjulistraat	Random bond	6 mm
1730	Asse	Prieelstraat 23	Random bond	6 mm
4880	Aubel	Route du Chateau Magis 15a
4630	Ayeneux	Chaussée de Wégemont 235	Random bond	6 mm
3060	Bertem	hoek Dorpstraat - Mezenstraat	Random bond	6 mm
9120	Beveren	Kallobaan	Random bond	6 mm
2530	Boechout	Molenlei - Heuvelstraat	Random bond	10 mm
9660	Brakel	Schudewee 9	Random bond	6 mm
1081	Brussel	Vrijheidslaan 25	Random bond	6 mm	black	appartements 'Upliving' BXL - The Brewery
9255	Buggenhout	Kamerstraat 7	Random bond	6 mm
4480	Engis	Rue de la Croix Rouge 1	Random bond	6 mm
9320	Erembodegem	Meerlaanstraat 21	Stretcher bond	6 mm
4700	Eupen	Fliedlweg 32A	Random bond	6 mm
3600	Genk	Oude Hofstraat 7	Random bond	6 mm
9000	Gent	Gestichtstraat 22	Random bond	6 mm
9500	Geraardsbergen	Hogeweg 91	Random bond	6 mm
9500	Geraardsbergen	Oudenaardestraat 264-262	Random bond	12 mm
9500	Geraardsbergen	Pachterstraat rechts van 120	Random bond	6 mm
8560	Gullegem	Cyriel Buysselaan 27	Random bond	6 mm
3500	Hasselt	Kloosterlaan 14	Random bond	6 mm
1540	Herne	Moerstraat tov 3B	Random bond	6 mm
9700	Heurne	Stropstraat 2	Random bond	12 mm
8650	Houthulst	Broeder Xaverianenstraat 6	Random bond	6 mm
8500	Kortrijk	Morinnestraat	Random bond
9770	Kruishoutem	Geldstraat 26	Random bond	6 mm
9280	Lebbeke	Koning Albert I straat 70	Random bond	6 mm
1770	Liedekerke	Eikenlaan 1	Random bond	6 mm
9100	Lokeren	Oude Vismijn	Random bond	12 mm
4020	Luik	Quai Godefroid Kurth 3	Stretcher bond	Cement joint
7700	Luingne	Rue Jean le Rond D'Alembert 26-32	Random bond	12 mm
3630	Maasmechelen	Rijksweg 361	Random bond	6 mm	White
9030	Mariakerke (Gent)	Oranjerielaan nr 5 en 7	Random bond	6 mm
9120	Melsele	Brielstraat 65 en 67	Random bond	6 mm
9860	Oosterzele	Geraardsbergse Steenweg 171b	Random bond	6 mm
3660	Opglabbeek	Elf Septemberlaan 54	Random bond	6 mm
8920	Poelkapelle	Bruggestraat 29 A	Random bond	6 mm
9600	Ronse	Kruisstraat 34	Random bond	6 mm
2840	Rumst	Kerkstraat 2-4	Random bond	6 mm	White
9112	Sinaai-Waas	Hulstbaan 152	Random bond	6 mm
9100	Sint Niklaas	Wegvoeringstraat 149	Random bond	6 mm
1080	Sint-Jans-Molenbeek	Mettewielaan - Condorlaan	Stretcher bond	8 mm
9100	Sint-Niklaas	Kardinaal Cardijnlaan 28	Stretcher bond	No joint
9170	St Gillis Waas	Kerkstraat 11	Random bond	6 mm
9140	Steendorp	Warandestraat 135	Random bond	6 mm
9190	Stekene	Kemelstraat 77	Random bond	12 mm
9140	Temse	Kapelstraat 168	Random bond	12 mm
1740	Ternat	Nieuwbaan 106	Random bond	6 mm
9140	Tielrode	Antwerpse Steenweg 98 en 100-106	Stretcher bond	6 mm
1480	Tubize	Chemin de la Vieille Cour 4	Random bond	6 mm
Postcode Straat Numm	Utrecht	Biltse Rading / Veemarktterrein	Random bond with strike-through joint	12 mm
1991	Velserbroek	Hofgeesterweg	Random bond	12 mm
1800	Vilvoorde	Vaartdijk	Random bond	6 mm
2260	Westerlo	Ernest Claeststraat 86	Random bond	6 mm
9230	Wetteren	Serskampsteenweg 216	Random bond	6 mm
9230	Wetteren	Sportstraat	Random bond	6 mm
8560	Wevelgem	Wittemolenstraat 17	Random bond	6 mm
6286 BB	Wittem	Höfkensweg 17	Random bond with strike-through joint	8 mm
9790	Wortegem-Petegem	Driesstraat 18C	Random bond	6 mm
3520	Zonhoven	Zavelstraat 85	Random bond	6 mm
9520	Zonnegem	Zonnegemdorp 7-13	Random bond	6 mm
9620	Zottegem	Rodestraat 46	Random bond	6 mm
9630	Zwalm	Zuidlaan 6	Random bond	6 mm

You can scroll in this list

Print all

Preparation of the construction site

Quality brickwork starts with the proper storage of the materials. Provide a firm level base so that bricks are not in contact with rain and/or dirt.

As clay is a natural material, successive production runs of the same kind of bricks may present colour variations and size tolerances.

The following precautions will help minimizing this:

Always order the full amount of bricks required for a specific site. In this way, the entire order can be made during one production run.
Try to have the full order supplied at one time. If this creates several deliveries, always mix a number of packs from the previous delivery with a number of packs from the new delivery. This procedure is especially recommended in case of re-order or for an additional order.
Take bricks diagonally across the pack.
Draw and use bricks from at least five different packs.
For setting out, use bricks from the delivery made to the site in question. Do not exclusively use the theoretical dimensions of the brick, or samples previously supplied, or different production run from that intended for the site.
As soon as the bricks arrive on site, check delivery tickets and certificates against the specification and order. Also check that there are no visible inconsistencies with the order.
Do not lay bricks in freezing weather or protect the ‘fresh’ masonry with insulating mats in order to avoid frost damage to the mortar.
In the case of prolonged dry hot weather, lightly dampen the newly laid brickwork to stop the mortar drying and curing too quickly.
Do not lay bricks in precipitation in order to prevent mortar from running on the wall.

Avoid Efflorescence

Brickwork is sometimes marred by white bloom. This efflorescence is usually caused because bricklaying is done under unfavourable weather conditions. The necessary protective measures are often not implemented due to a tight schedule and fast building pace. In very wet conditions, water in soluble substances can result in efflorescence on the surface. In spring as well as autumn, after a wet period (when the brickwork has dried again), soluble substances can rise to the surface as a result of moisture transport. After evaporation of the water, a white bloom is left behind. (Source: Efflorescence on brickwork – Heidelberg Cement Group)

Efflorescence on brickwork is always likely to occur. There is no brick - or combination of a certain brick with a specific mortar - that is absolutely efflorescence-free. By taking a few simple precautions, the risk of efflorescence can be reduced.

During and after laying, protect the newly built brickwork for a height of at least 60 cm - but ensure there is airspace between the brick face and the waterproof covering.
Provisionally install rainwater down pipes to avoid saturation of the newly laid brickwork
Never lay bricks in driving rain conditions
